My Great Lakes 2T-1A-2 Rebuild Diary 2007.

03/04-September-2007. Made up the replacement wooden parts for R/H lower wing inspection panel, ready for when I mix some glue for the centre section spar. I have a friend coming over to give me a quick covering lesson so I am preparing some parts for recovering.

I have also created a HELP ME page on this site for areas/parts etc that I don't know what fits. Please have a look especially if you have a Great Lakes 2T-1A-2.
Here is this evenings progress:

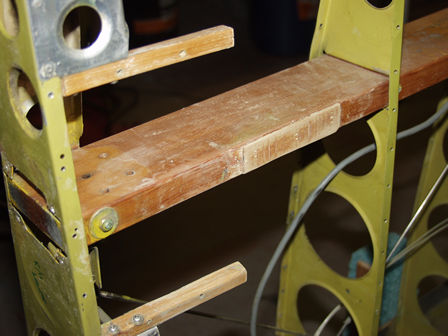

The missing parts. I have cleared the area of broken parts ready to replace.

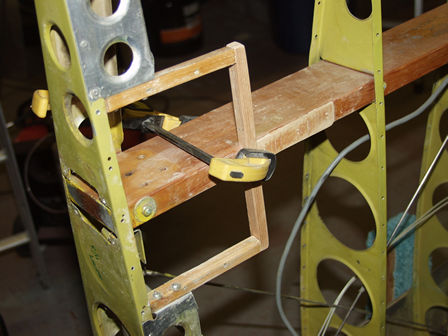

First new part. This needed a cutout area for the spar at an angle to align with the ribs.

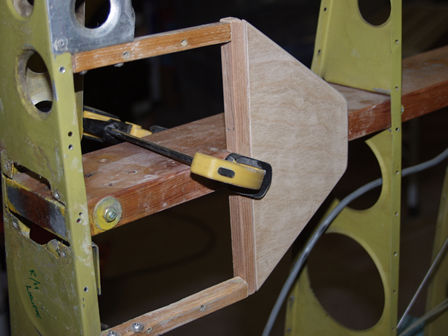

I sanded all parts to esure no shar edges . Also ensured they aligned exactly with the ribs.

David is coming over to give me some tips on recovering. So I am reparing some control surfaces ready for his visit.

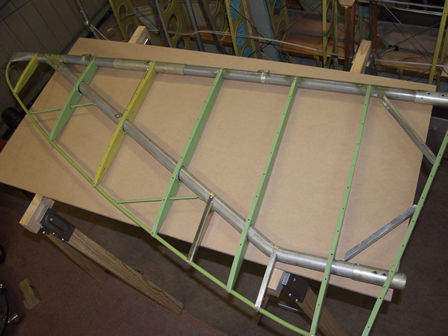

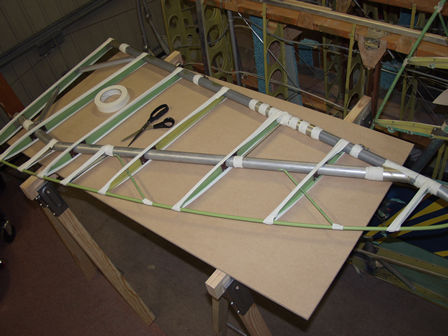

I have cleaned and taped this HS Stabalizer.

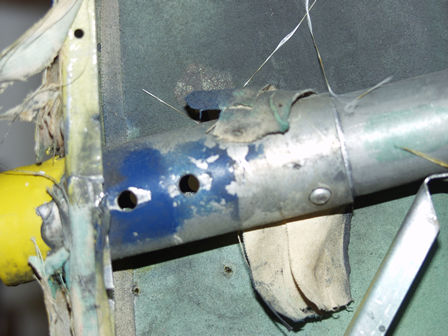

I was looking at an old part covered HS I had. It is in very bad condition and it is interesting to see the damage. The spar is cracked and the end of the tube is also cracked where the rivets are.

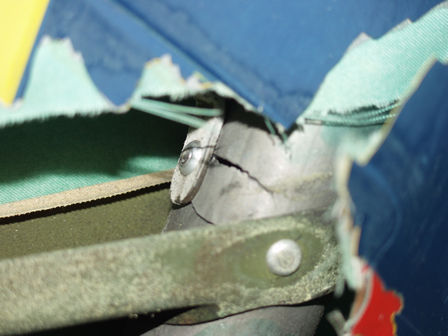

I found more damage under the covering. This control surface is off serial no. 771.

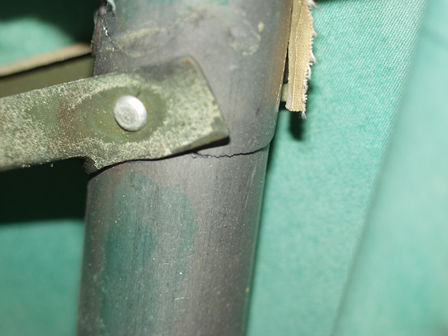

the crack is almost totally around the tube. This control surface is a total writeoff, pleased mine are 100% but it gives me a good idea what to check on mine.
