My Great Lakes 2T-1A-2 Rebuild Diary 2007.

12/14/15-December-2007. Still very cold outside so I have just done a couple of hours in he evenings, and Saturday afternoon. Continued progress with the L/H Upper wing. I have set/tensioned the drag & anti-drag wires and checked alignment. Finished glue fitting on the centre wood brace and wood parts on rear spar to trailing edge.


Here is todays progress:

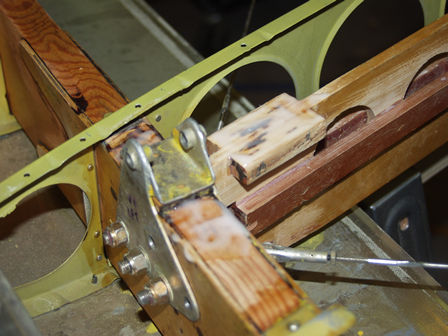

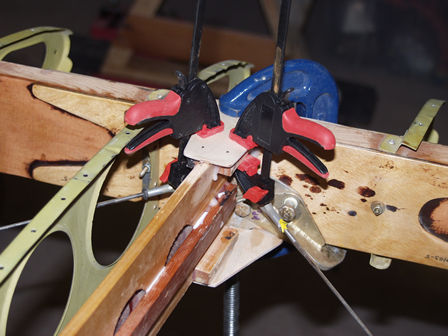

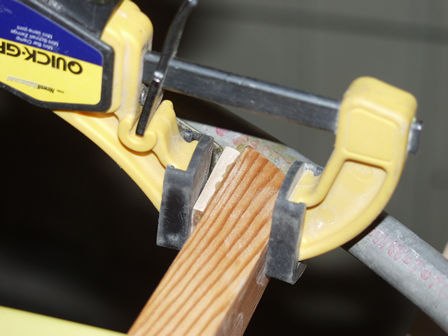

Now I have set the drag & anti-drag I am gluing the wood brace in position.

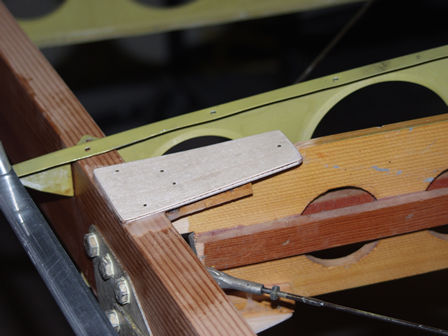

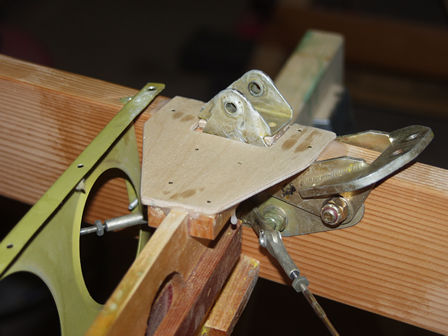

Brace in position.

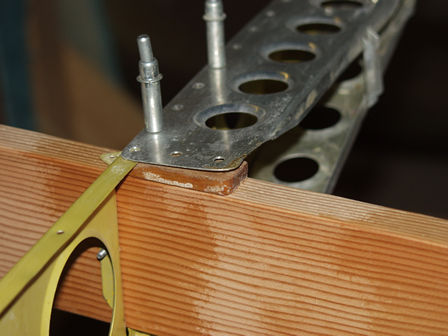

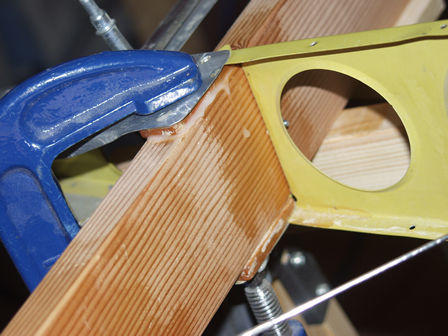

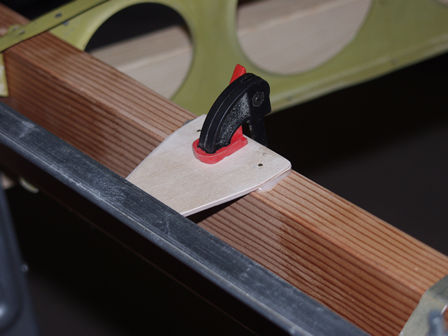

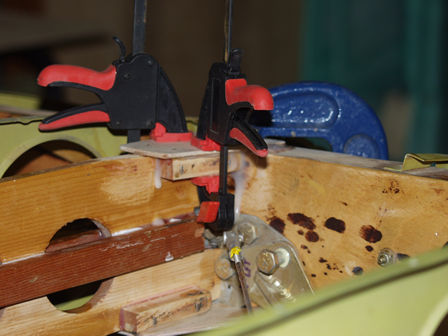

Lots of small parts needed to be glued to the spar.

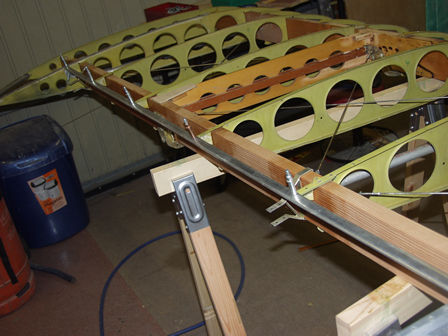

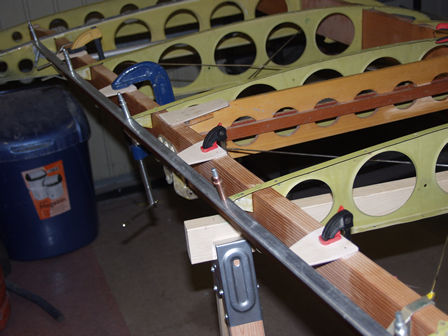

Now I have set/tensioned the drag & anti-drag wires I refitted the trailing edge to check alignment.

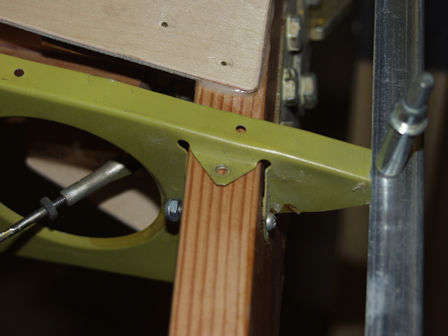

I bolted the ribs in place but did not fit the rib screws until I set the drag & antidrag wires.
I will remove the trailing edge varnish the wing parts.
