My Great Lakes 2T-1A-2 Rebuild Diary 2007.
12-August-2007. Barry my inspector came to see the project on Thursday, I now have my application into the PFA. In the mean time I am putting some parts on the fuselarge to see what goes where and what parts I need etc.

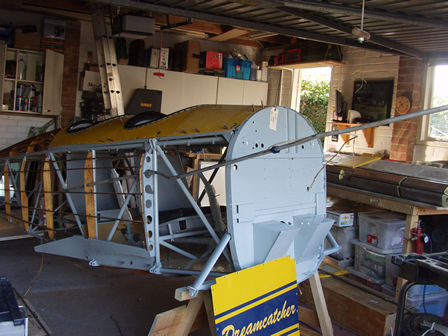

Here I am fitting the oil breather pipe. It has a connection on the firewall and the pipe runs inside the fuselarge to the tail.

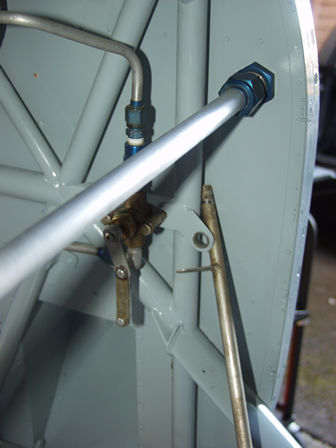

The fuel valve. It is as stiff as hell so I am thinking of switching it for an Andair valve.
Oil breather connection onto the firewall.

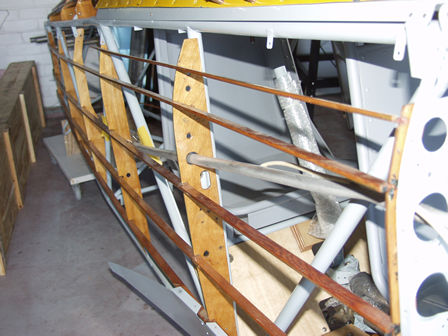

This is the reason for fitting the breather pipe now. Not easy to get it through all of these.
CAN YOU HELP??

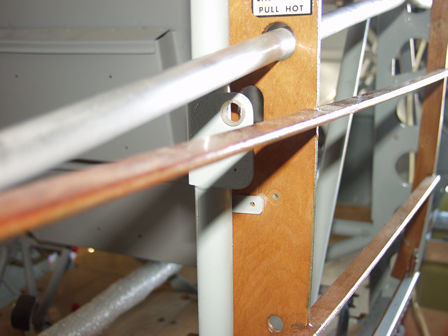

Not sure what goes here..... it is next to the pilots seat by the shoulder. Four holes. Something mounts here but I don't know what yet!!! So if you know please mail me tim [at] gapilot .co .uk
CAN YOU HELP?

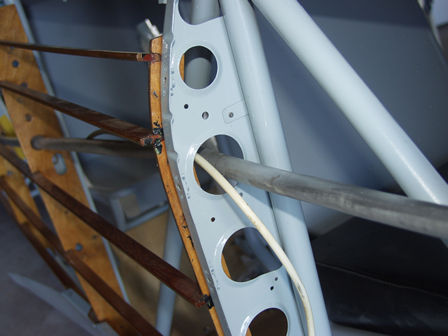

What is the smaller flexible pipe coming out of the oil breather. The flexible pipe runs all the way to the back. I think it is the static vent line.
CAN YOU HELP?

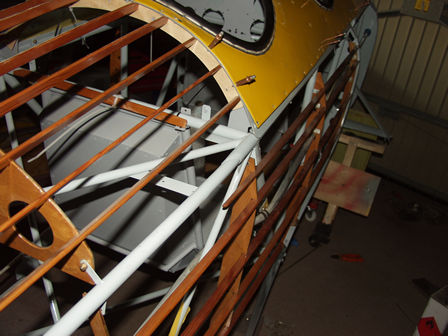

Not sure what goes through the two holes (small arrows). The larger arrow - there are marks on the wood showing something was bolted here.
